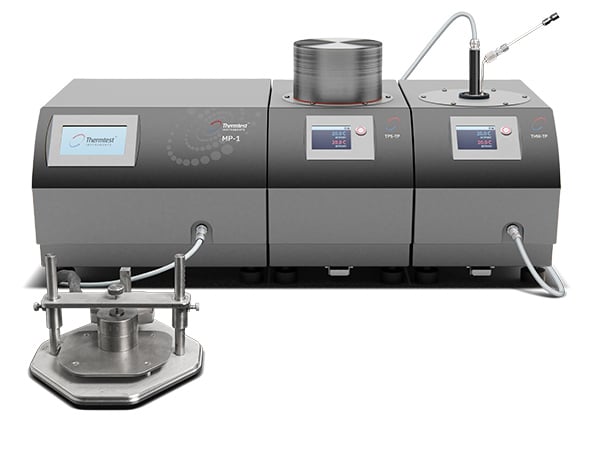

MP-1 Measurement Platform
The MP-1 is designed to test the absolute thermal conductivity, thermal diffusivity and specific heat of solids, liquids, pastes and powders with the powerful combination of the transient plane source (TPS, ISO 22007-2) and transient hot-wire (THW, ASTM D7896) methods.
Best For Solids, Liquids, Pastes, and Powders
TPS-Temperature Platform
TPS-TP: 0 to 300 °C
Expanded: -160 °C | -50 °C | -20 °C | 0 to 300°C
Uniformity: < 0.1 °C
THW-Temperature Platform
THW-TP: 10 to 200 °C
Extended for 200 °C: -15 °C | 0 °C to 200 °C
Extended for 300 °C: -160 °C | -45 °C | 0 °C to 300 °C
